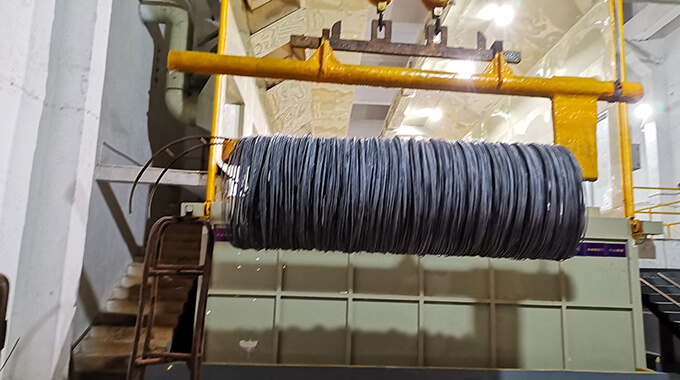

Alambre X3NiCr18-16 de CHQ

Diámetro: 0,40-46mm

Resistencia a la tracción: Refiérase a la información técnica

Product Detail Technical Information Inspection Packaging

Shanghai Creation GroupEs una empresa de referencia que se centran en el hilo de acero de calidad de encabezado frío en China. Todo el equipo de gestión tiene 20 años de experiencia en la industria. Construimos buenas relaciones con muchos proveedores de nivel 1 para la industria automotriz, todos los alambrón proviene de acerías de marca. Todos los pedidos son 100% rastreables.

Condición de entrega

: EN o EN el PE

: EN C

: EN C AT

: EN C EN LC

Calidad de la superficie

- : Continua y suave

- : Libre de costuras, superposiciones, fosos, arañazos y cicatrices de dibujo

- : Libre de óxido

Aplicación

- : Industria del automóvil

- : Industria de la construcción

- : Industria de la maquinaria

- : Otras Industrias

Estudio de caso

Products & Service

Alambrón

Decapado y fosfatado

Trefilado en frío

Recocido de globulización

Inspección

Producto terminado

1. Combinación de términos de entrega

Tabla D.1-Combinaciones de condiciones de tratamiento térmico en el momento de la entrega, formas del producto y requisitos aplicables

Heat-treat- ment con- dition at delivery	Symbol	Product form a			Steel a			Applicable requirements
Heat-treat- ment con- dition at delivery	Symbol	Wire rod	Bar	Wire	Ferri- tic	Marten- sitic	Austenit- ic and austenit- ic- ferritic	Applicable requirements
Solution annealed or solution annealed +peeled	+AT or AT+PE	X	X	X	—	一	X	Chemical compo- sition as specified inTable D.2	Mechani- cal prop- erties as speci- fied in Tables D.3, D.4 and D.6	Supple- mentary or special re- quirements as specified in Annex Eb
Solution annealed +cold drawn	+AT+C	一	X	X	—	—	X
Solution an- nealed +cold drawn + solution an- nealed	+AT+C +AT		X	X			X
Solution an- nealed +cold drawn+solu- tion annealed + skin passed	+AT+C +AT+ LC		X	X			X
Soft annealed or soft annealed + peeled	+A or +A+PE	X	X	X	X	X	—
Soft annealed + skin passed	+A+LC	—	X	X	X	X	—
Soft annealed + cold drawn + soft annealed	+A+C +A		X	X	X	X
Soft annealed + cold drawn+ soft annealed + skin passed	+A+C +A+LC	—	X	X	X	X	—
Others	Other delivery conditions may be agreed at the time of enquiry and order.
a X=applicable,-=not applicable. b If agreed at the time of the enquiry and order

2. Composición química

Tabla D.2-Composición química (aplicable al análisis de fundición) de calidades de acero inoxidable

Designation		% mass fraction a
Steel name	ISO steel number	C	Si		Mn		P		S		Cr		Ni		Mo		N		Cu		Others
Austenitic steels
X10CrNi18-8	4310-301-00-1	0,05 to 0,15		2,00		2,00		0,045		0,015		16,0 to 19,0		6,0 to 9,5		0,80		0,10		1,00		—
X2CrNi18-9	4307-304- 03-1	0,030		1,00		2,00		0,045		0,030		17,5 to 19,5		8,0 to 10,0		一		0,10		1,00		—
X6CrNiCu18-9-2	4567-304- 98-X	0,08		1,00		2,00		0,045		0,030		17,0 to 19,0		8,0 to 10.5				0,10		1,00 to 3,00		—
X3CrNiCu18-9-4	4567-304-30-1	0,04		1,00		2,00		0,045		0,030		17,0 to 19,0		8,5 to 10,5 b		—		0,10		3,00 to 4,00		—
X3CrNiCu19-9-2	4560-304- 75-E	0,035		1,00		1,50 to 2,00		0,045		0,015		18,0 to 19,0		8,0 to 9,0		—		0,10		1,50 to 2,00		—
X5CrNi18-10	4301-304- 00-1	0,07		1,00		2,00		0,045		0,030		17,5 to 19,5		8,0 to 10,5		—		0,10		1,00		—
X6CrNiTi18-10	4541-321-00-1	0,08		1,00		2,00		0,045		0,030		17,0 to 19,0		9,0 to 12,0				一		1,00		Ti=5xC to 0,70
X2CrNi19-11	4306-304- 03-1	0,030		1,00		2,00		0,045		0,030		18,0 to 20,0		10,0 to 12,0		—		0,10		1,00		—
X6CrNi18-12	4303-305- 00-I	0,08		1,00		2,00		0,045		0,030		17,0 to 19,0-		10,5 to 13,0				0,10		—		——
X3NiCr18-16	4839-384- 00-1	0,04d		1,00		2,00		0,045		0,030		15,0 to 17,0		17,0 to 19,0		—		一		——
Austenitic steels with Mo
X2CrNiMo17-12-2	4404-316- 03-1	0,030		1,00		2,00		0,045		0,030		16,5 to 18,5		10,0 to 13,0		2,00 to 3,00		0,10		1,00
Elements not quoted in this table may not be intentionally added to the steel without the agreement of the purchaser except for finishing the heat.All appropriate precautions are to be taken to avoid the addition of such elements from scrap and other materials used in production that would impair mechanical properties and the suitability of the steel. Maximum values unless otherwise indicated A minimum content of8,0 %of Niis permitted,unless otherwise agreed at the time of enquiry and order. For this document,a range for Cr:16,5 to 19,0 is allowed. d For this document,C:0,08 is allowed. In order to improve the cold formability,a carbon content of max.0,04 %is recommended and may be agreed at the time of enquiry and order.

Designation		% mass fraction a
Steel name	ISO steel number	C	Si	Mn	P	S	Cr	Ni	Mo	N	Cu	Others
X5CrNiMo17-12-2	4401-316- 00-I	0,07	1,00	2,00	0,045	0,030	16,5 to 18,5	10,0 to 13,0	2,00 to 3,00	0,10	1,00	—
X6CrNiMoTi17-12-2	4571-316-35-1	0,08	1,00	2,00	0,045	0,030	16,5 to 18,5	10,5 to 13,5	2,00 to 2,50	一	1,00	Ti=5xC to 0,70
X2CrNiMo17-12-3	4432-316-03-1	0,030	1,00	2,00	0,045	0,015	16,5 to 18,5	10,5 to 13,0	2,50 to 3,00	0,10	1,00	一
X3CrNiMo17-13-3	4436-316- 00-1	0,05	1,00	2,00	0,045	0,015	16,5 to 18,5	10,5 to 13,0	2,50 to 3,00	0,10	—	一
X2CrNiMoN17-13-3	4429-316- 53-I	0,030	1,00	2,00	0,045	0,015	16,5 to 18,5	10,5 to 13,0	2,50 to 3,00	0,12 to 0,22	1,00	—
X3CrNiCu- Mo17-11-3-2	4578-316- 76-E	0,04	1,00	2,00	0,045	0,015	16,5 to 17,5	10,0 to 11,0	2,00 to 2,50	0,10	3,00 to 3,50	一
X6NiCFTj MoVB25-15-2	4980-662- 86-X	0,08	1,00	2,00	0,040	0,030	13,5 to 16,0	24,0 to 27,0	1,00 to 1,50		一	Ti:1,90 to 2,35 Al:0,35 V:0,10 to 0,50 B:0,001 to 0,010
Austenitic-ferritic steel
X2CrNiMoN22-5-3	4462-318- 03-1	0,030	1,00	2,00	0,035	0,015	21,0 to 23,0	4,5 to 6,5	2,50 to 3,50	0,10 to 0,22	—	—
Ferritic steels
Elements not quoted in this table may not be intentionally added to the steel without the agreement of the purchaser except for finishing the heat.All appropriate precautions are to be taken to avoid the addition of such elements from scrap and other materials used in production that would impair mechanical properties and the suitability of the steel. Maximum values unless otherwise indicated. A minimum content of 8,0 %of Ni is permitted,unless otherwise agreed at the time of enquiry and order. For this document,a range for Cr:16,5 to 19,0 is allowed. d For this document,C:0,08 is allowed. In order to improve the cold formability,a carbon content of max.0,04 %is recommended and may be agreed at the time of enquiry and order.

Designation		% mass fraction a
Steel name	ISO steel number	C	Si	Mn	P	S	Cr	Ni	Mo	N	Cu	Others
X6Cr17	4016-430- 00-1	0,08	1,00	1,00	0,040	0,030	16,0 to 18,0	—	—	—	—	—
X6CrMo17-1	4113-434- 00-1	0,08	1,00	1,00	0,040	0,030	16,0 to 18,0	一	0,75 to 1,40	一	—	一
Martensitic steel
X12Cr13	4006-410- 00-1	0,08 to 0,15	1,00	1,50	0,040	0,030	11,5 to 13,5	0,75		—	—	—
Elements not quoted in this table may not be intentionally added to the steel without the agreement of the purchaser except for finishing the heat.All appropriate precautions are to be taken to avoid the addition of such elements from scrap and other materials used in production that would impair mechanical properties and the suitability of the steel. a Maximum values unless otherwise indicated. b A minimum content of 8,0 %of Ni is permitted,unless otherwise agreed at the time of enquiry and order c For this document,a range for Cr:16,5 to 19,0 is allowed. d For this document,C:0,08 is allowed. In order to improve the cold formability,a carbon content of max.0,04 %is recommended and may be agreed at the time of enquiry and order.

3. propiedades mecánicas

Cuadro D.6-Propiedades mecánicas para aceros inoxidables martensíticos en las condiciones de suministro especificadas

Designation		Diameter		Delivery condition
Designation		Diameter		+A or +A+PE		+A+LC		+A+C+A		+A+C+A+LC
Steel name	ISO steel number	above mm	up to mm	Rm max. MPa	Z min. %	Rm max. MPa	Z min. %	Rm max. MPa	Z min. %	Rm max. MPa	Z min. %
X12Cr13	4006-410- 00-1	0,8	2							740	58
		2	5		—	——	——	600	60	660	58
		5	10	600	60	720	57	600	60	640	58
		10	25	600	60	700	57	600	60	640	58
		25	100	600	60	—	—	—	—	—
